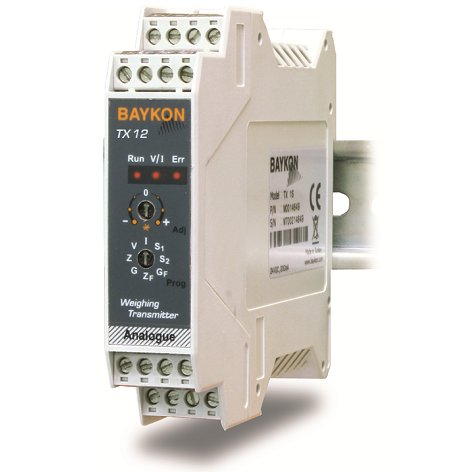

TX12 Analog Load Cell Transmitter is accurate and reliable instrument which is easily integrated into process control and force measurement systems.

Analogue output is programmable to 4-20 mA, 0-20 mA, 0-10 V or 0-5 V. Its high quality analog and digital hardware minimizes long time zero and span drifts. Its high resolution, matched and normalized analogue output gives advantage calibration at PLC and changing the instrument without recalibration.

eCal Electronic Calibration gives advantage easy calibration of the high capacity tanks and silos. Its additional fast calibration feature enables performing calibration similar to Digital Indicators.

2 cut off outputs of TX12 can be set via programming rotary switches on front of the instrument or via PC software to produce control or alarm signals.

Key Features:

-Analogue output: 4-20 mA, 0-20 mA, 0-10 V or 0-5 V
-Load cell excitation: 5 VDC
-Power supply: 12 - 28 VDC, max. 0,2 A
-Operation temperature: Between -15degC and +55degC
