BR032SD

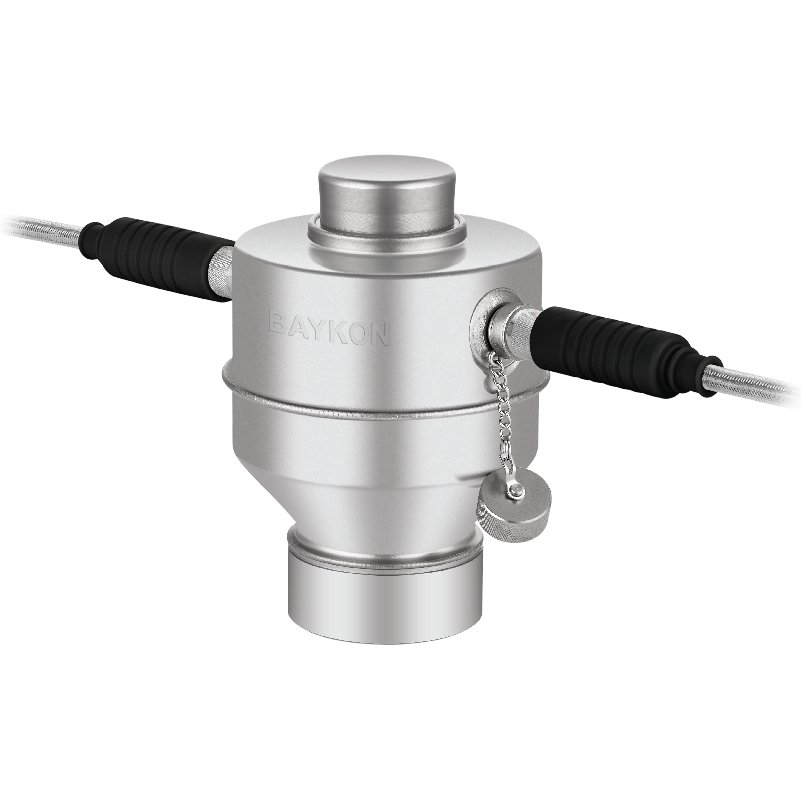

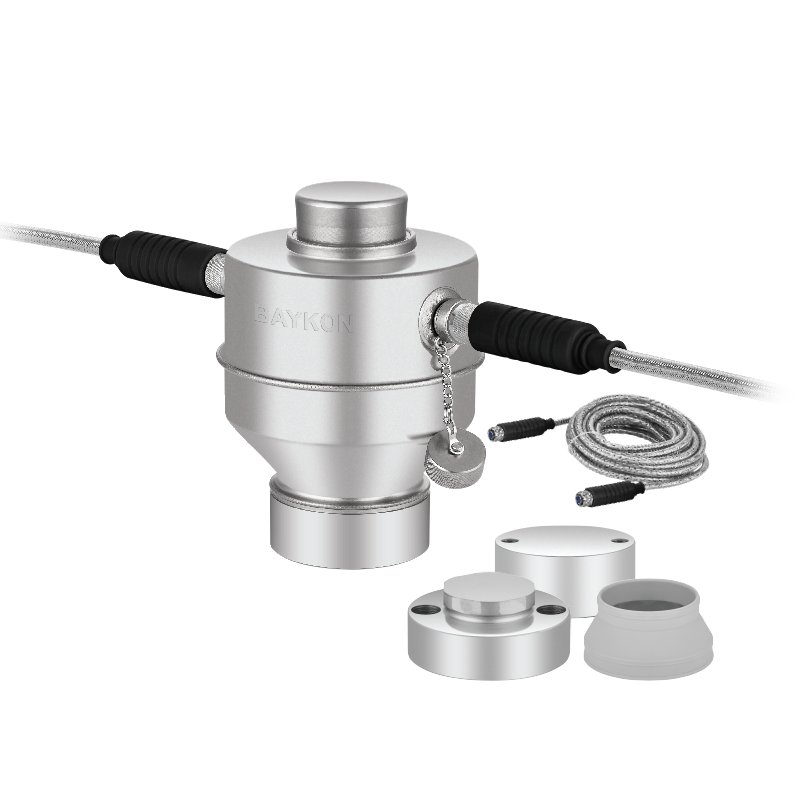

BR032SD digital load cells are designed to use mainly for vehicle scales and similar heavy-capacity weighing applications. It is a compression type load cell with an integral rocker-pin design that automatically aligns load forces for accurate weighing. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.
BR032SD digital load cells provide more accurate, fast and effective service opportunity with technologic design structure. Those digital load cells; eliminate possible errors which can occur with standard analogue load cell scales such as temperature, nonlinearity, hysteresis, electromagnetic effects and voltage variation. Weighing is blocked in case of load cell is broken.
Its advanced electronic design provide high resolution and long term stable digital output signal for accurate and reliable measurement. BR32SD digital load cells are matched at the production which provides direct replacement without
calibration with test weights for non-legal scales.
calibration with test weights for non-legal scales.
Key Features:
- Capacities: 20, 30, 50, 100 tons
- Stell construction
- Protection class: IP68
- Stell construction
- Protection class: IP68
