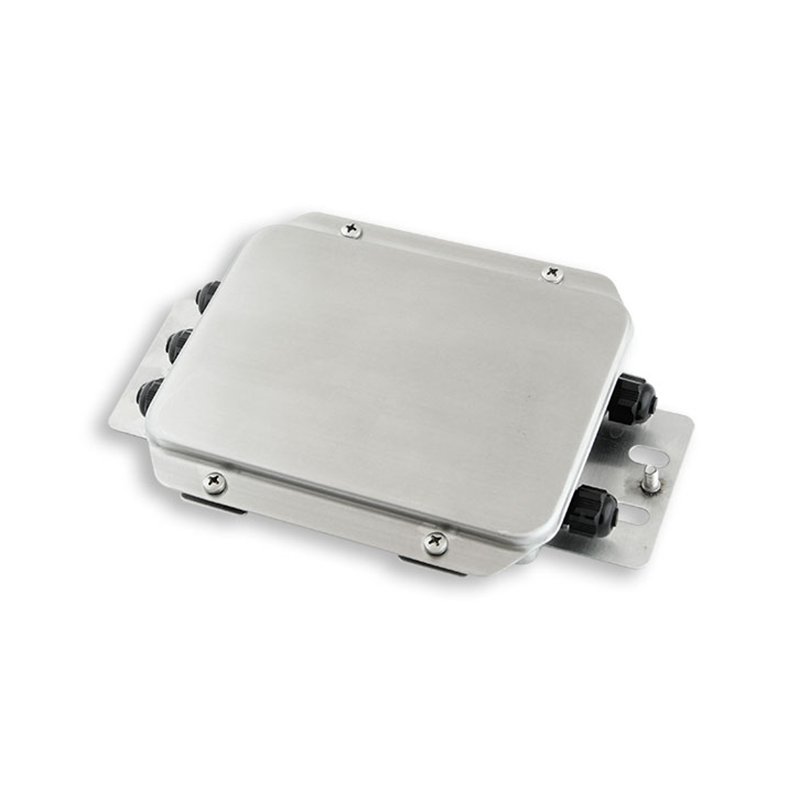

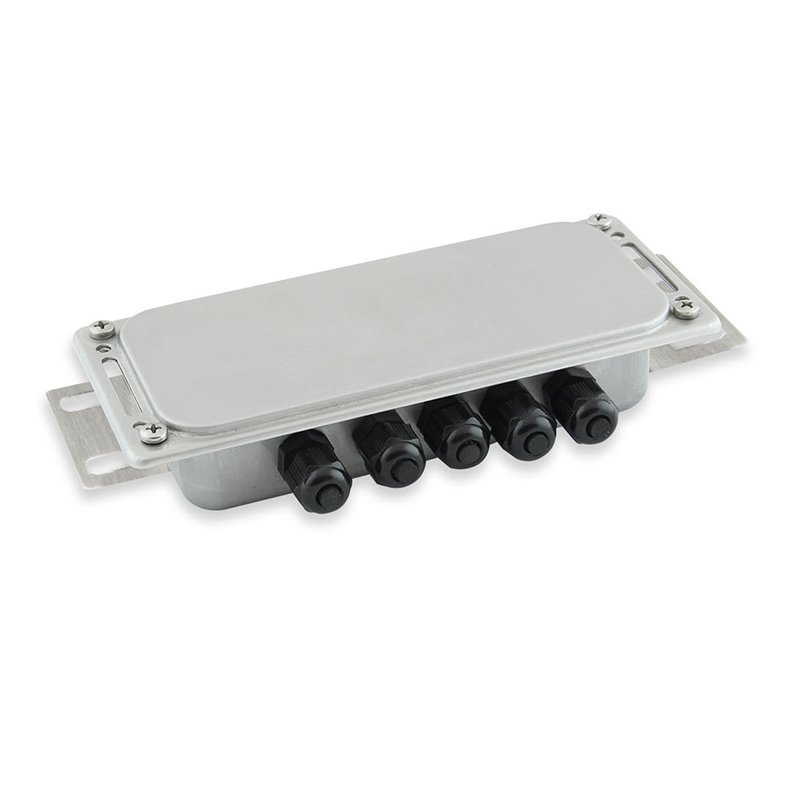

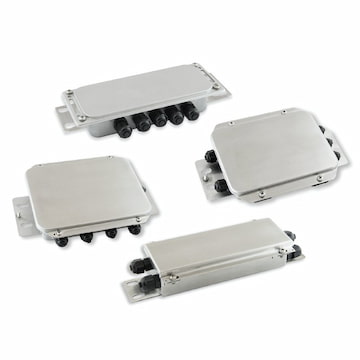

INDUSTRIAL JUNCTION BOXES BJS

The Scale Accuracy do not only depend on the quality of the indicator and load cell. The Junction Box is the third very important instrument to determine the scale accuracy. Precision Baykon BJS series Junction Boxes are designed to use in every kind of industrial weighing applications including weigh-bridges, tank scales, silo weighing systems, conveyor scales and high capacity scales etc. Components of Baykon junction boxes has been carefully selected very sensitively to ensure high accuracy over a long life.

Baykon BJS Series Junction Boxes are produced the most accurate output from matched load cells to high unbalanced load cells. The signal accuracy of the matched load cells does not changed because of the electronic circuitry in the junction box.

The Scales equipped with BJS Junction Boxes can be used in all kind of industrial areas up to wet and hygienic environments.

Key Features:

-Protection class: IP67
-Enclosure material: Stainless steel
-Sealing: Available

Group

Functional Features

Typical applications

- High capacity scales
- Weighbridges
- Industrial weighing applications
- Weighing in wet and hygienic environments
- Weighing systems under lightning risk

Features

- Up to 8 load cells connection
- Corner trimming by high long term stable components
- Stainless steel housing
- IP67 waterproof protection
- Easy eccentricity adjustment
- Doesn't distort the signal balance of the matched load cells

Suitable for various industries

- These instruments are designed for heavy industrial environments
- IP67 stainless steel housing
- Wide operating temperature range
- Lightning protection increases your system's reliability in long term.
- Junction box with metal glands are available.

Technical Specifications
