RX14/S REMOTE DISPLAYS

Panel type RX14/S industrial remote indicators can be used as a remote display of  weighing indicators, weighing terminals and digital transmitters.

Their 14 mm big weight display regarding small panel size gives the increased visibilty advantage to the instrument.

ABS front panel of RX14 has IP65 protection and stainless steel front panel of RX14S has IP67 protection on the cabinet.

Key Features:
-Display size: 14 mm
-Serial interface: RS232C, RS485
-Protection class: IP65/IP67
-Power supply: 100 -240 VAC or 12 VDC

Group

Functional Features
RX14 Remote display
-Low cost
-14 mm display height
-Super bright display
-Panel mount with ABS front panel
-IP65 protection on cabinet
RX14S Remote display
-Stainless steel front panel
-14 mm display height
-Super bright display
-Panel mount
-IP67 protection on cabinet
Heavy industrial design
-These instruments are designed for heavy industrial environments.
-Wide operating temperature range from -15 to 55 degC
-Easy readable from long distance

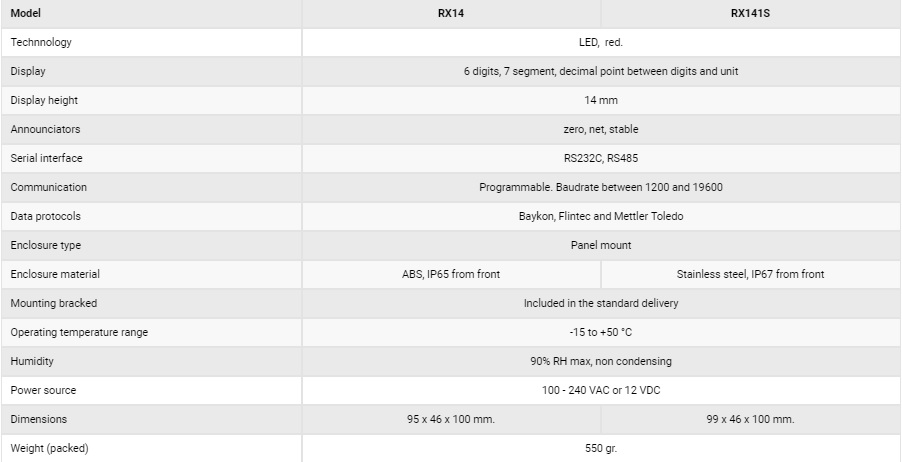

Technical Specifications

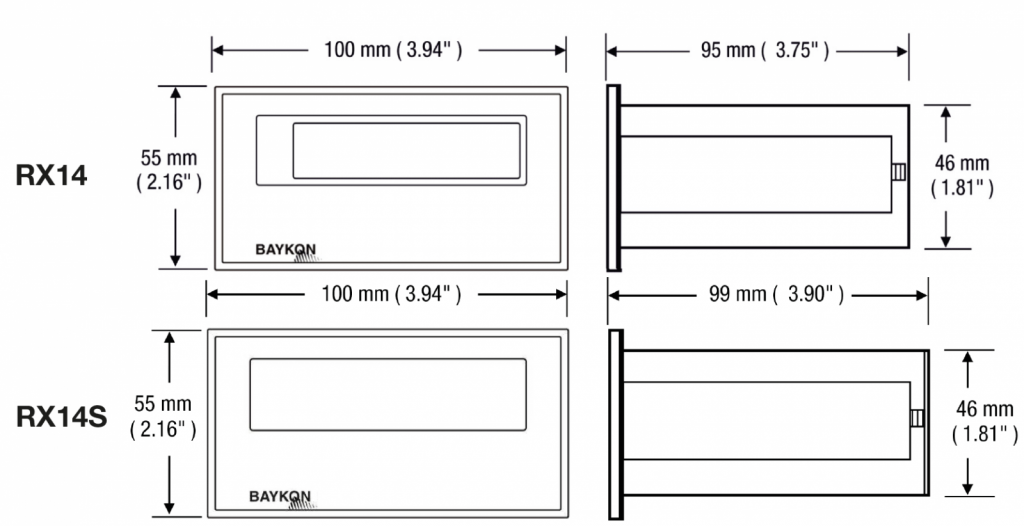

Dimensions
Documents
PDF icon brochure-879-kb.pdf
Sectors

Balances and Scales Manufacturing

OEM's and System Integrators

Process Automation
