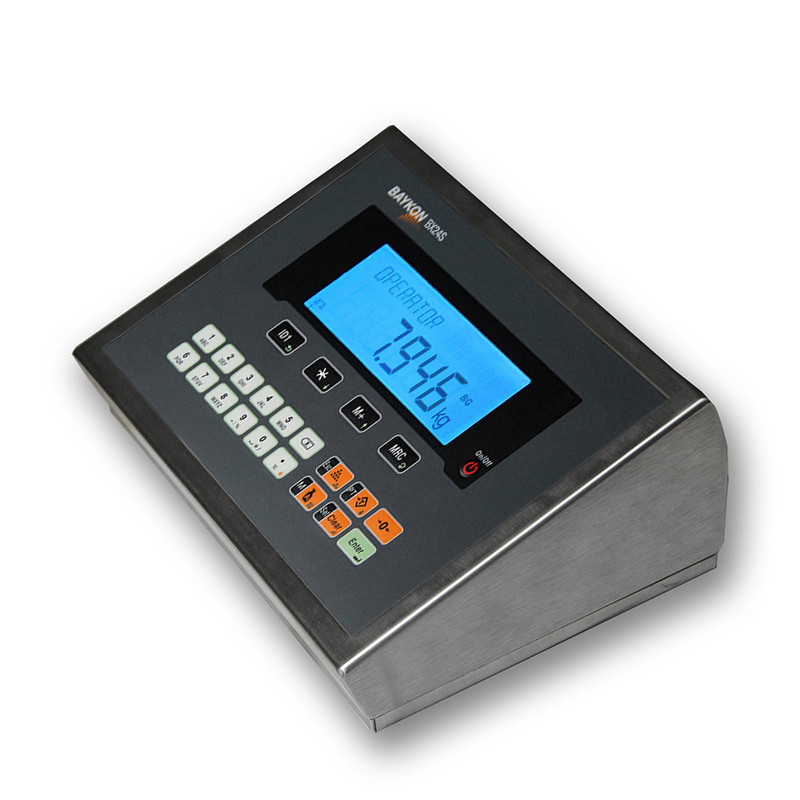

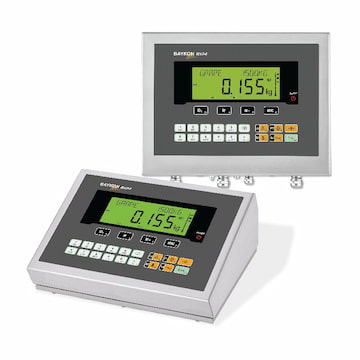

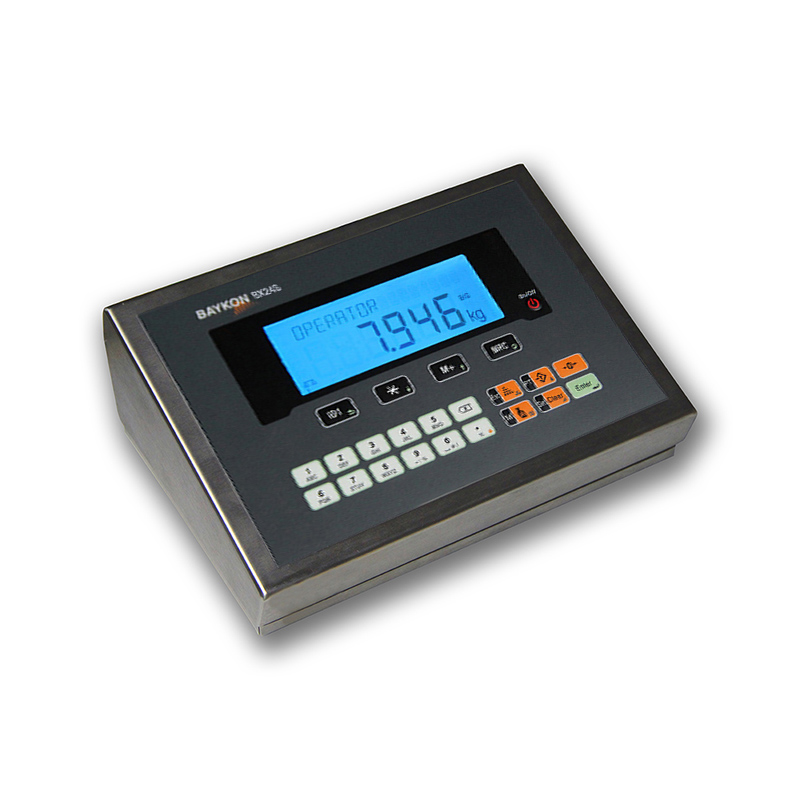

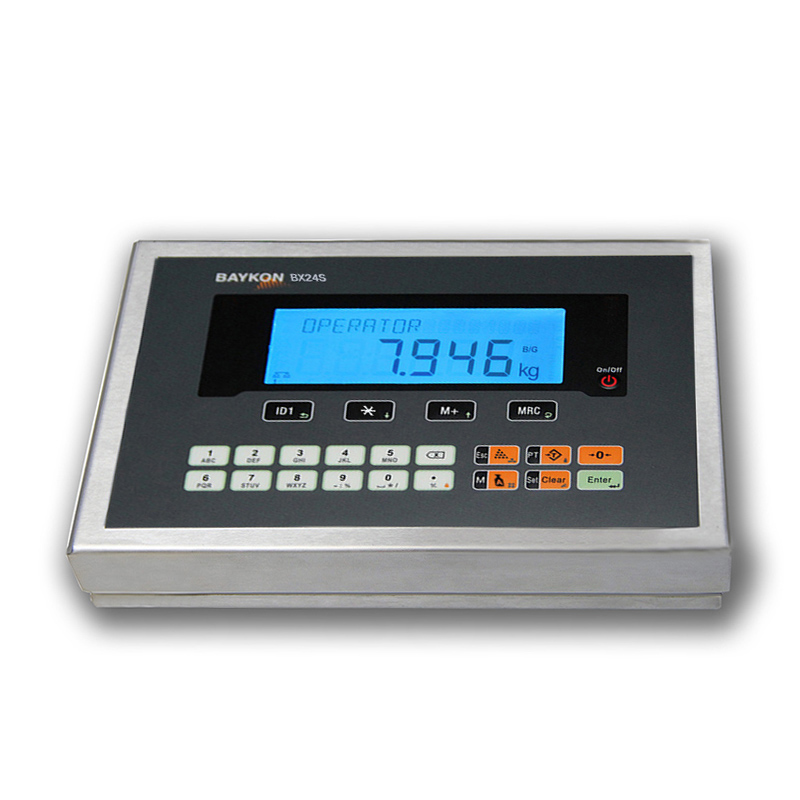

BX24 / BX24D WEIGHING INDICATOR

Baykon BX24 & BX24D are accurate, multifunctional weighing terminals which can be used in wet, hygienic and harsh industrial areas. Terminals have configurable operating modes for common weighing applications such as weighing, labelling, piece counting, checkweighing, classifying, dynamic weighing and filling. Depending on the application, 3 programmable keys can be set to related functions for quick and easy operation.

Instruments have 6 memories; ID1 & ID2, preset tare, APW and item limit values; each have 500 records capacity. IDs can be linked to other memory records for fast, easy and reliable operation; when an ID is selected, depending on the operation mode item limit values, specific tare or APW values comes automatically.

BX24 & BX24D offer direct connection to remote display, PC and PLCs via various data protocols such as demand, continuous form and BSI command set.

Key Features:

- Multifunctional weighing terminal
- OIML approved
- Protection class: IP67
- Power supply: 100 - 240 VAC

Group

Functional Features

Main Features

- Stainless steel, IP67 protected for wet, hygienic and harsh areas

- Color changing display, SmartAPP 16 digit alphanumeric info line,

- ID1, ID2, PT, item limit values, APW memories; each 500 items record

- Automatic memory linkage to IDs

High Technology and Performance

- High resolution scales up to 999 999 display resolution

- Up to 800 conversions per second

- Application based SmartAPP

- Changing color for prompting

- High capacity tank scales supported by eCAL - electronic calibration

Typical Applications

- Weighing and data collection

- Customized labelling with barcode

- Counting by sample & APW memory

- Livestock and dynamic weighing with strong filtering algorithm

- Checkweighing, classifying & filling

Interfaces & Communication

- 2 x RS232C, RS485, Ethernet TCP/IP and USB are standard,
- Printing via key, digital input, and serial port
- Continuous data output
- BSI command set for master slave communication

Technical Specifications
