BX11 WEIGHING INDICATOR
BX11, is a smart indicator for industrial weighing process applications offering powerful PLC integration facilities; serial ports as RS-232C, RS-485, 4 digital inputs and 5 digital outputs, Ethernet, Analog Output and fieldbus connections such as Ethernet/IP, Modbus, Profibus, Profinet, CANopen, EtherCAT and CC-Link.
Powerful calibration options including electronic calibration without test weights supports easy and fast start-up and service. BX11 is featuring adaptive filtering for fast settling, high display resolution and 1600 conversion per second speed.

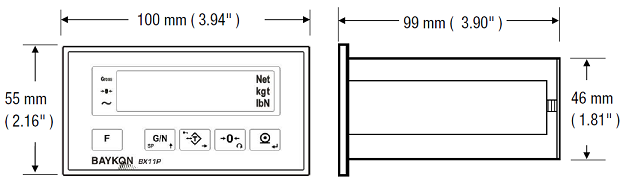

It's small size aluminium body provides perfect panel installation with its big display and with its small space need on control panels. The instrument has stainless steel front panel for usage in harsh environments.
-EU type approval: 10 000 intervals
-Protection class: IP65
-Power supply :12-28 VDC max. 300 mA
