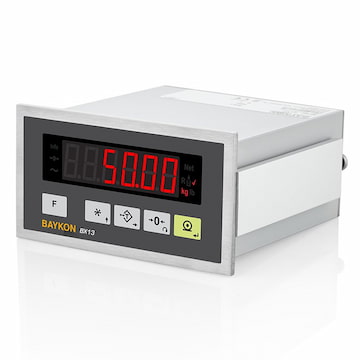

BX13 is a professional filling controller designed for any type of filling processes of liquid, bulk and granule material with all types of packages.

With its 16.000.000 internal resolution, high speed with up to 1600 measurements per second, selectable standard digital and statistical filters, BX13 provides fast and accurate filling results in even harsh environments with vibrations.

It has 4 standard filling modes for open container filling and above level bung hole filling; and 2 modes for packing machines. This controller has 4 opto-isolated digital inputs and 5 relay contact outputs, 2 none - isolated output. They are used for filling and discharging processes.

Powerful calibration options including electronic calibration without test weights supports easy and fast start-up and service. BX13 has powerful PLC integration facilities; serial ports as RS-232C, RS-485 and fieldbus connections such as Ethernet, Modbus, Profibus, Profinet, CANopen, EtherCAT and CC-Link.

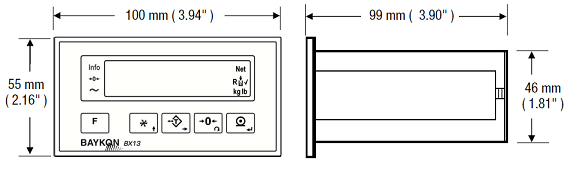

It's small size aluminium body provides perfect panel installation with its big display and with its small space need on control panels.

Key Features:

-OIML approved
-EU type approval: 10.000 intervals
-Protection class: IP65
-Power supply: 12-28 VDC. max. 300mA
